27.3.3 Adhesion Force
The adhesion force is the result of pressure differences between the vacuum inside the pad and the atmospheric pressure outside, multiplied by the vacuum pad’s surface area. i.e. the force required to remove the load from a vacuum lifter.

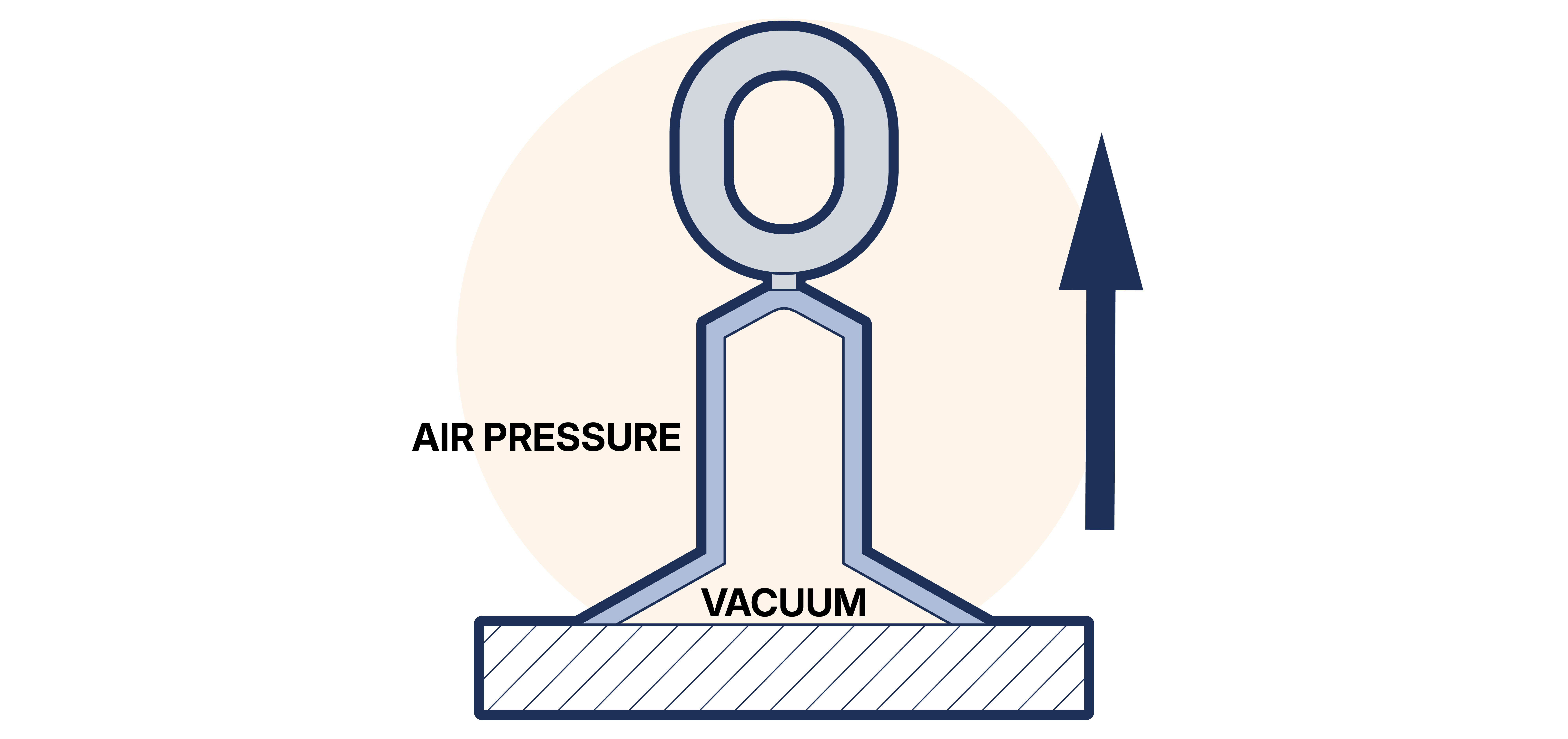

Figure 27.3.3-1 Adhesion force arising from pressure difference and vacuum pad area
