    9.4.2 Non-adjustable Type Beam Clamps

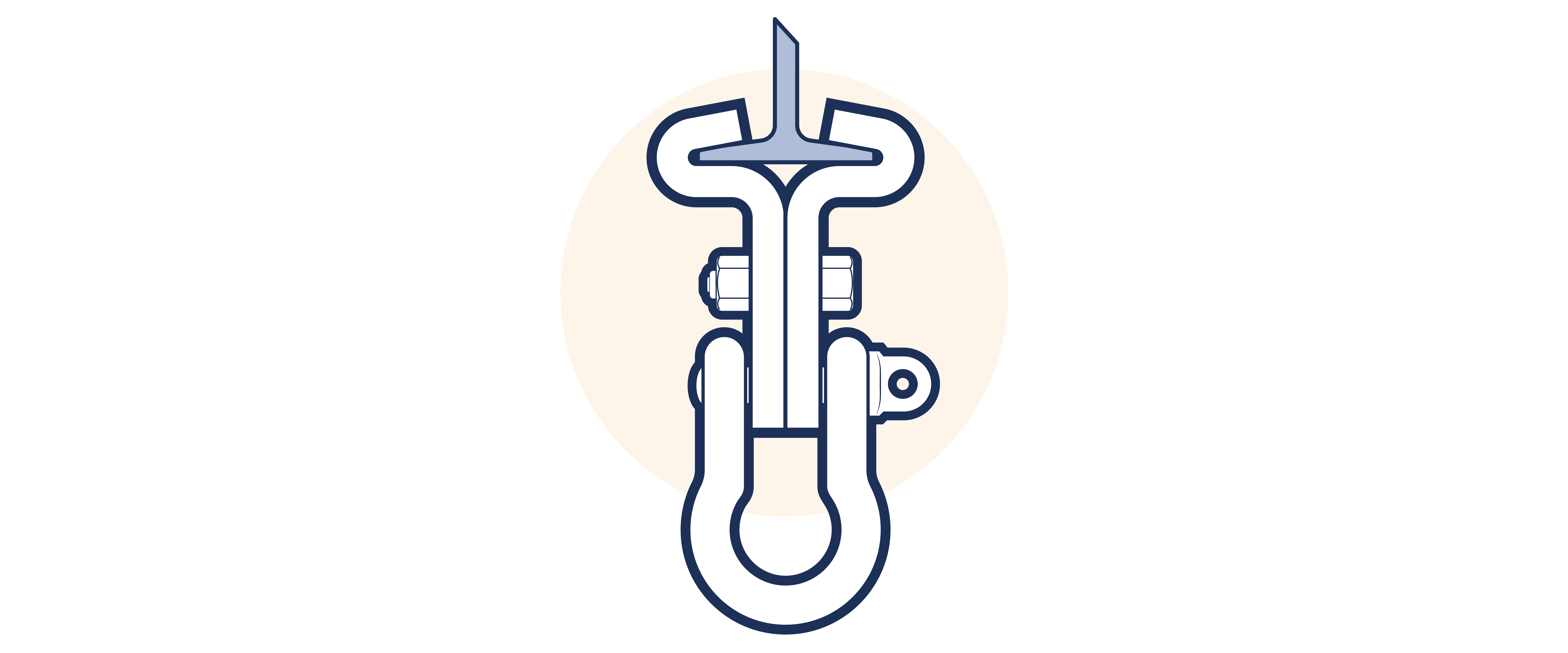

    A non-adjustable type beam clamp is suitable for one size of beam only. Within this class will be found many of the ‘one off’ clamps purpose made for a particular beam. A typical example is shown in Figure 9.4.2-1 .

    Figure 9.4.2-1
