3.3.1 Suspension Level

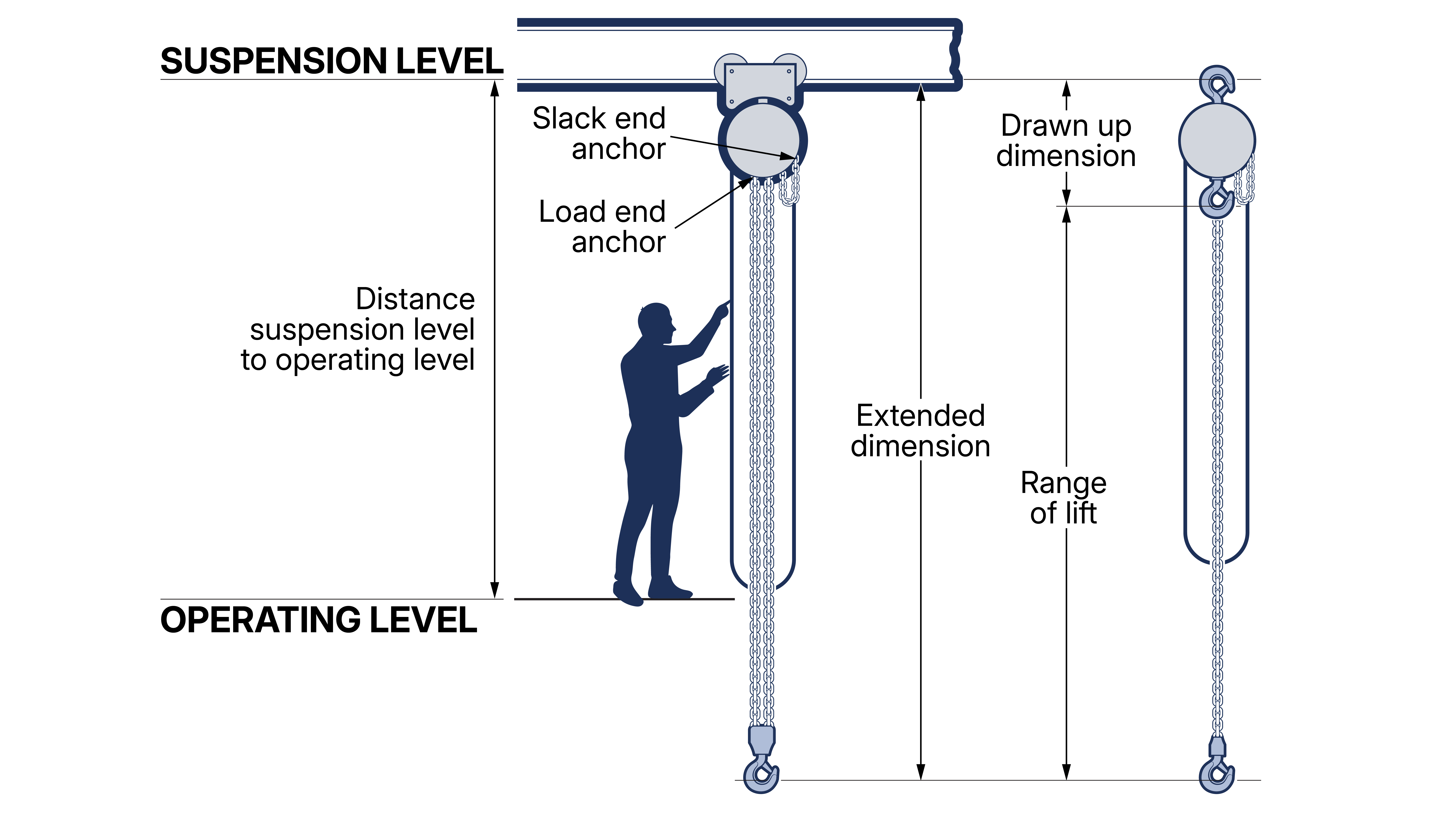

In the case of a hoist suspended from a hook, the suspension level is the level of the suspending hook saddle. In the case of a hoist combined with a trolley, it is the level of the surface upon which the trolley runs. In other cases, it is similar appropriate levels. (See Figure 3.3.1-1 )
