9.5.5 Line of Loading

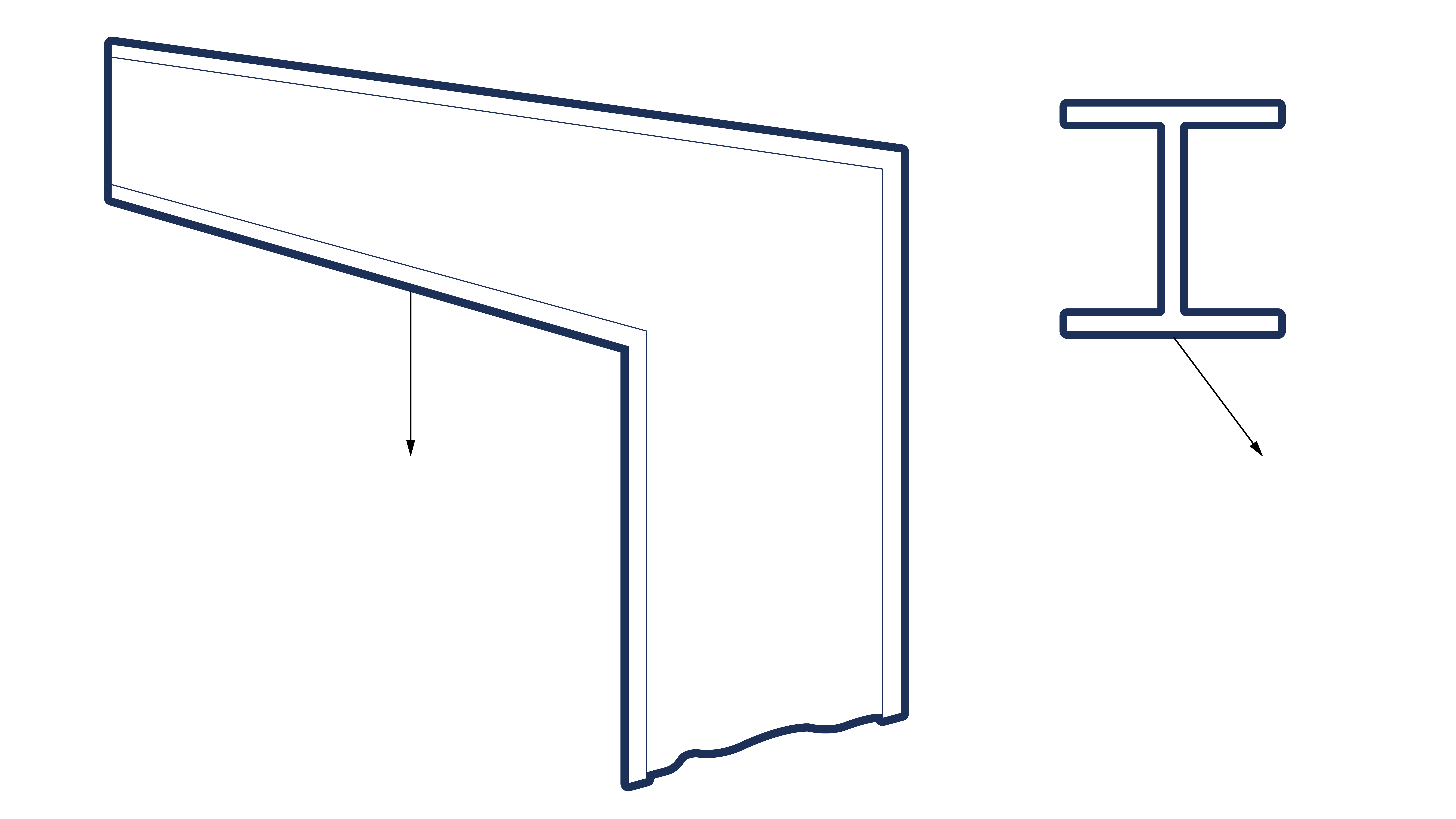

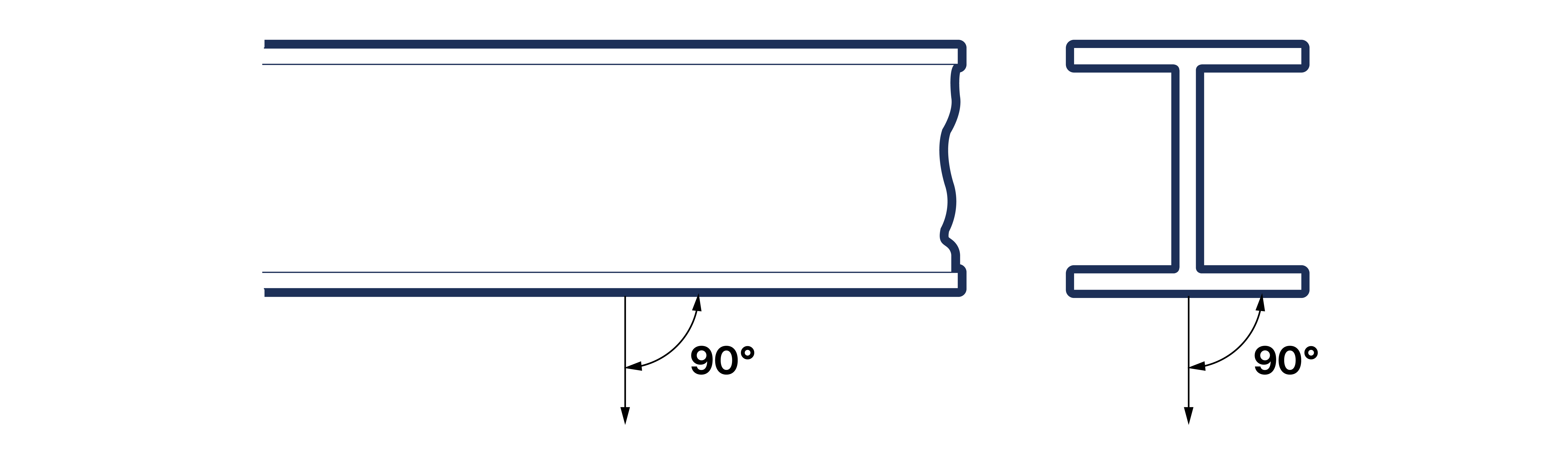

Many designs of clamp are intended for ‘in line’ use only – i.e. the line of force must be at right angles to the flange of the beam to which it is attached (See Figure 9.5.5-1 ) It is therefore important to ensure that for ‘angled’ applications (See Figure 9.5.5-1 ) a clamp of suitable design is selected.
