14.4.1 Common Sling Assemblies
This subsection illustrates the most commonly used chain sling assemblies. Other special assemblies may be devised for lifting specific unusually shaped loads. Although the upper terminal fittings illustrated are links, rings were also permitted in some standards, but LEEA does not recommend their use.

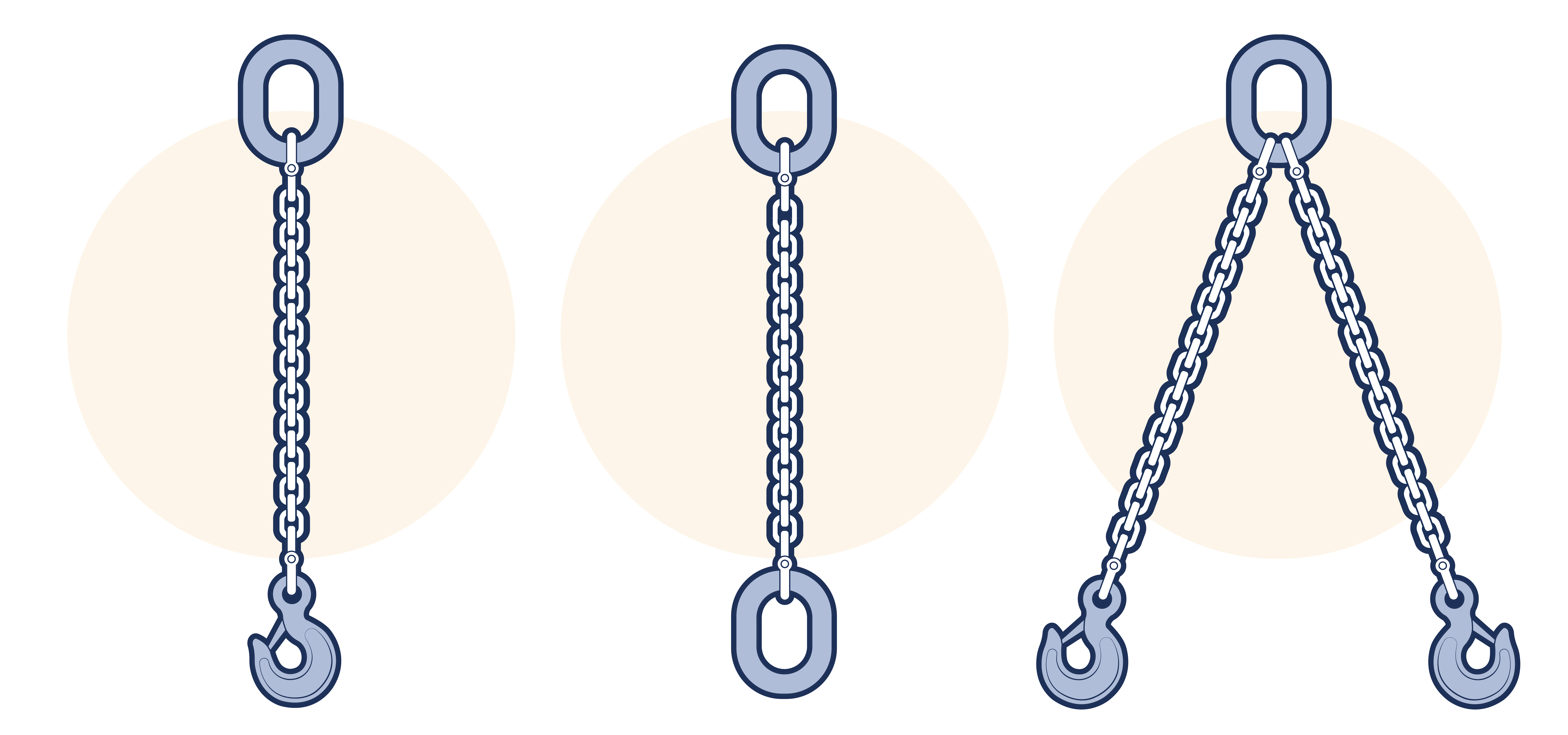

Figure 14.4.1-1 A. Single leg sling. B. Collar sling (If one end will pass through the other, this is known as a reevable collar sling). C. Two leg sling.

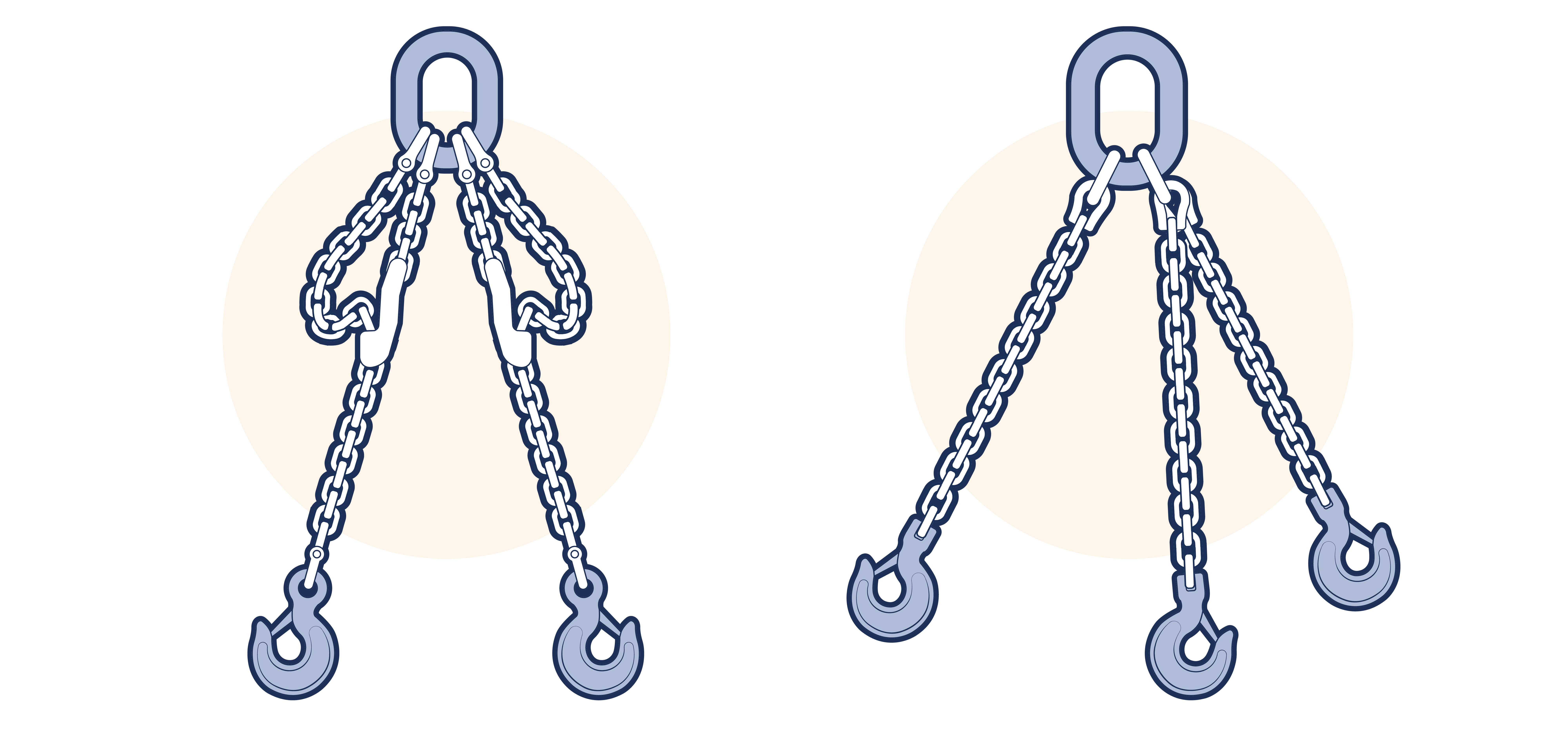

Figure 14.4.1-2 A. Adjustable two leg sling. B. Three leg sling.

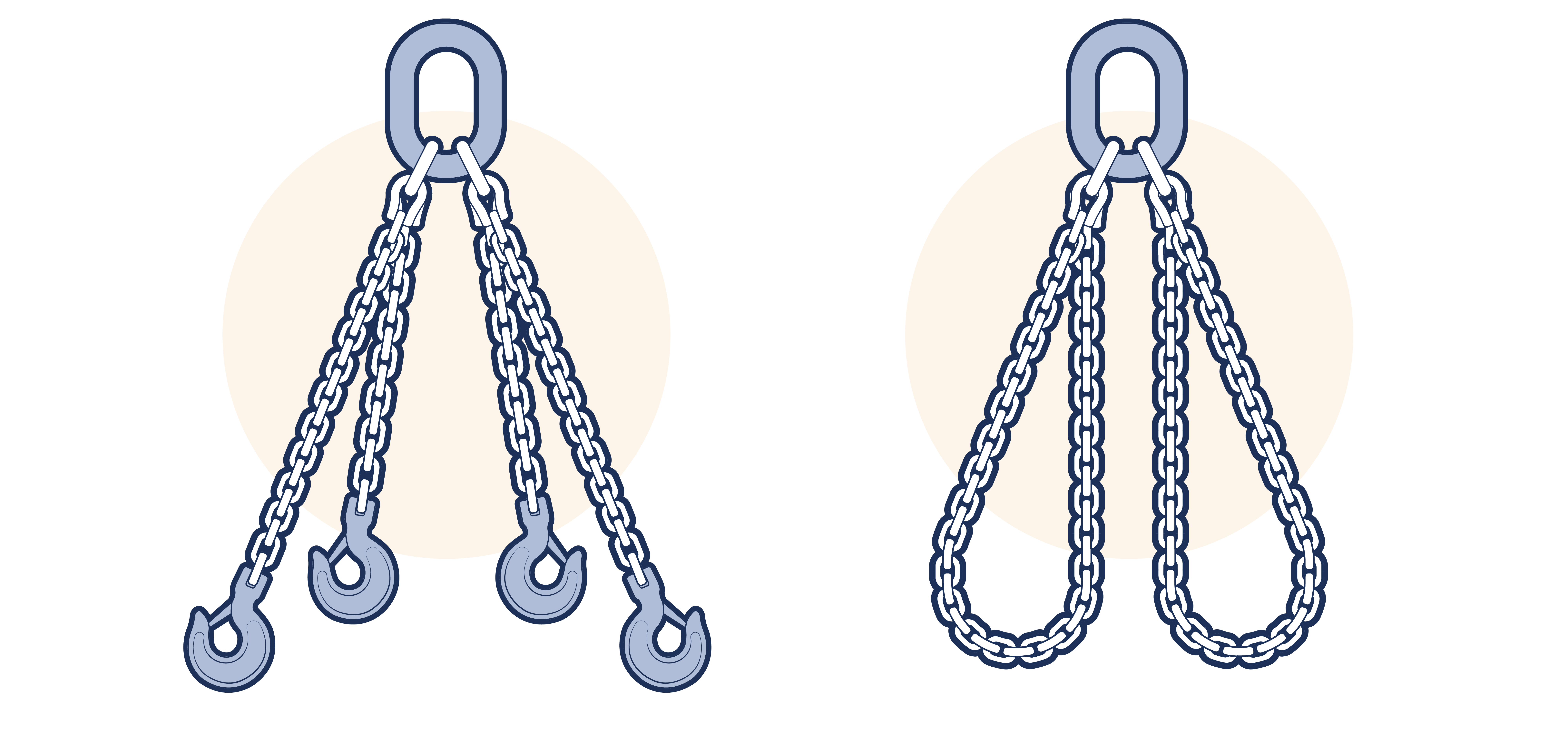

Figure 14.4.1-3 A. Four leg sling. B. Double basket sling.

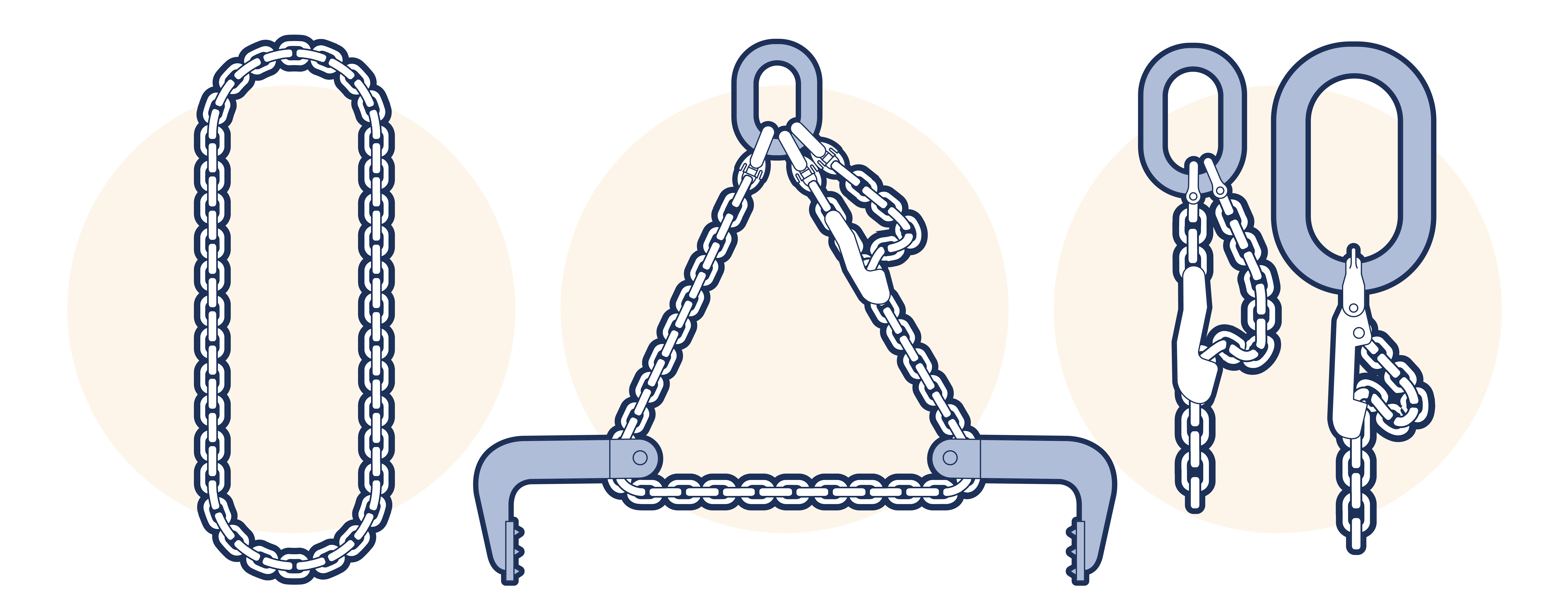

Figure 14.4.1-4 A. Endless sling. B. Case sling. C. Shortening clutches.
